Precision masking for electronics manufacturing—sold by the full case.

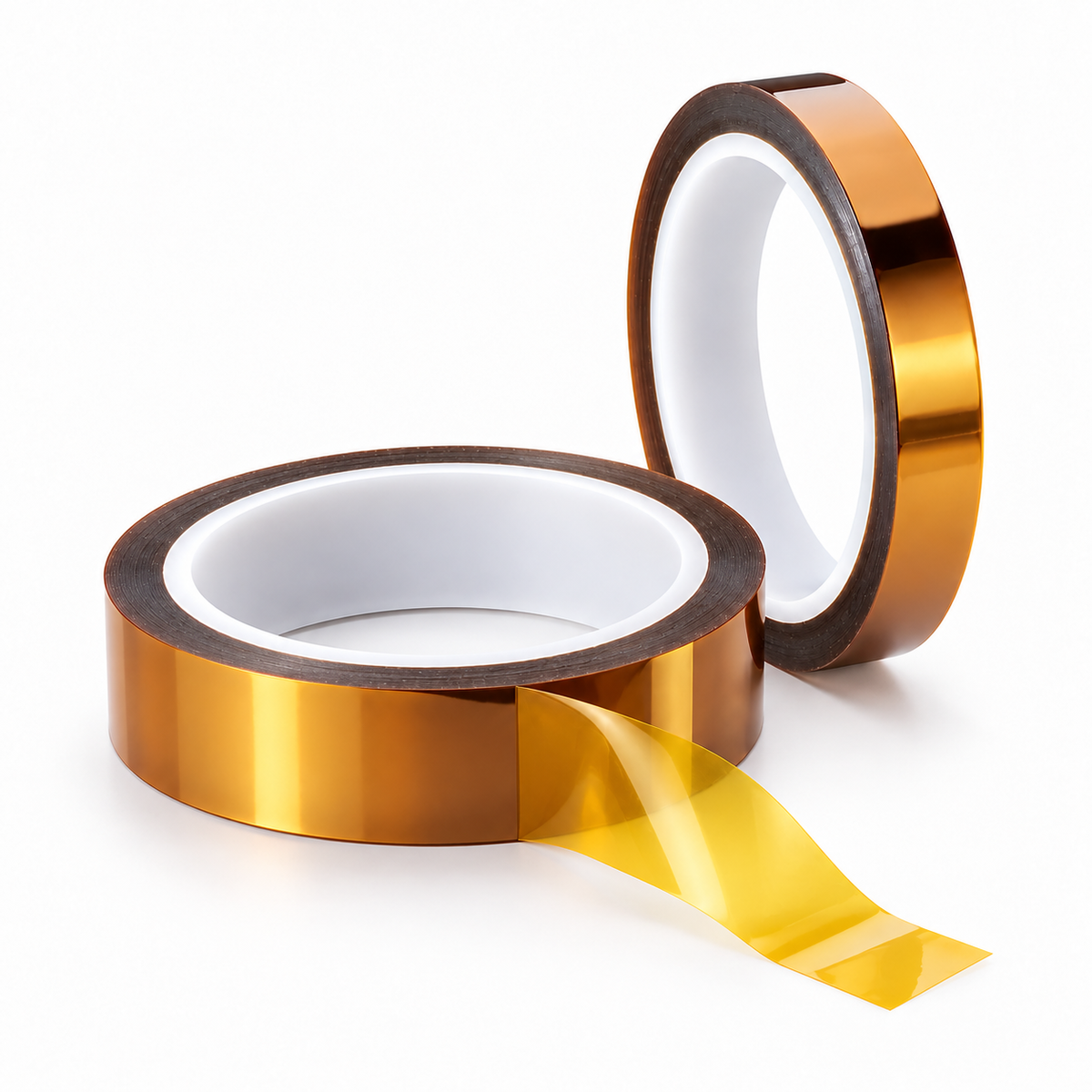

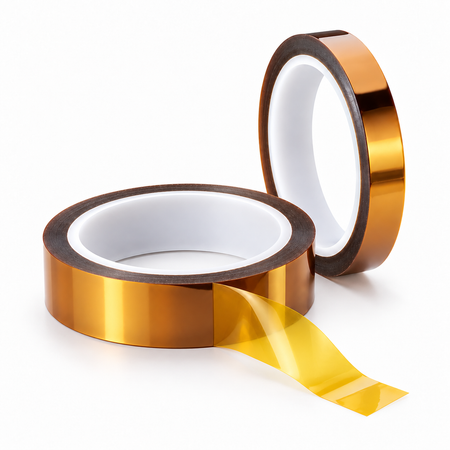

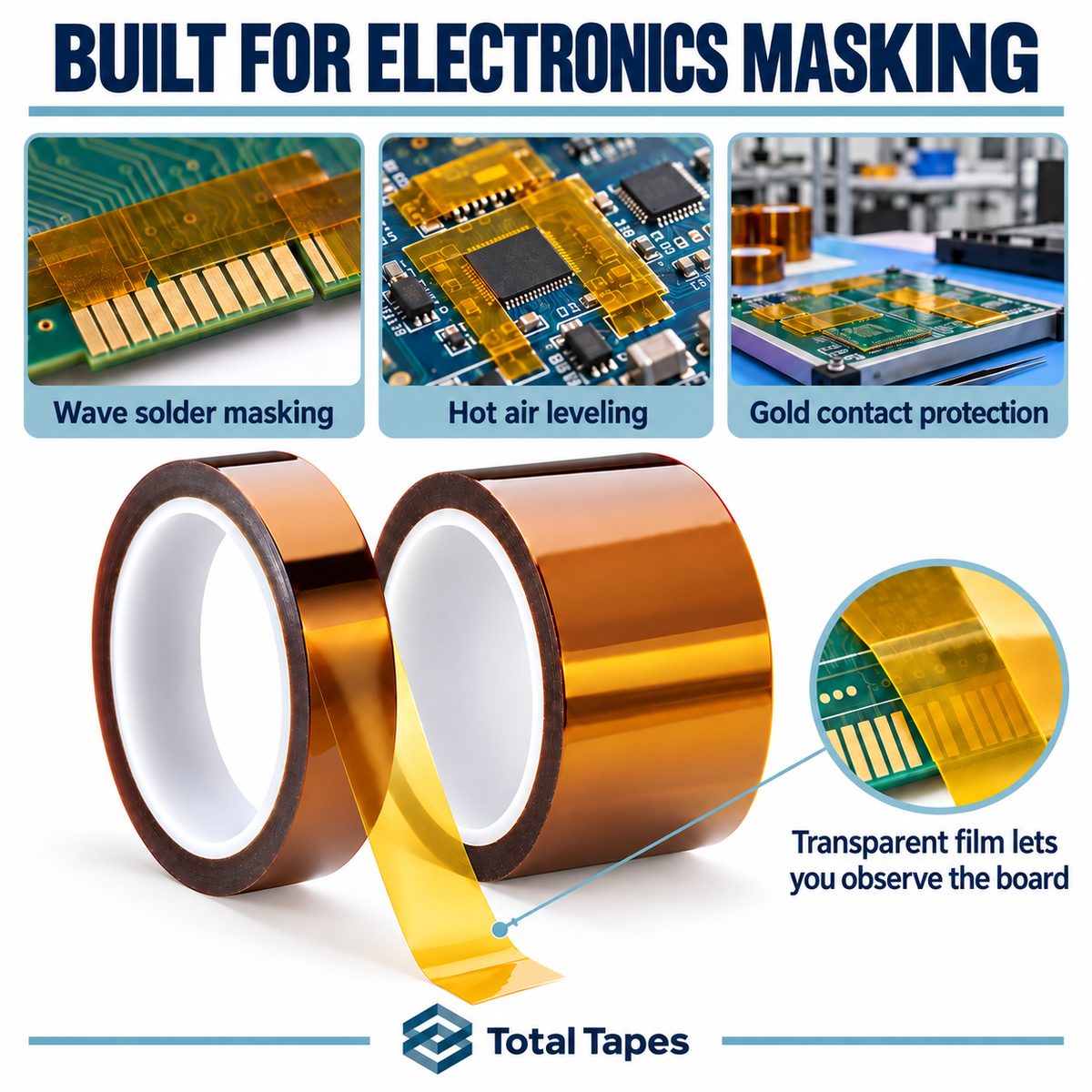

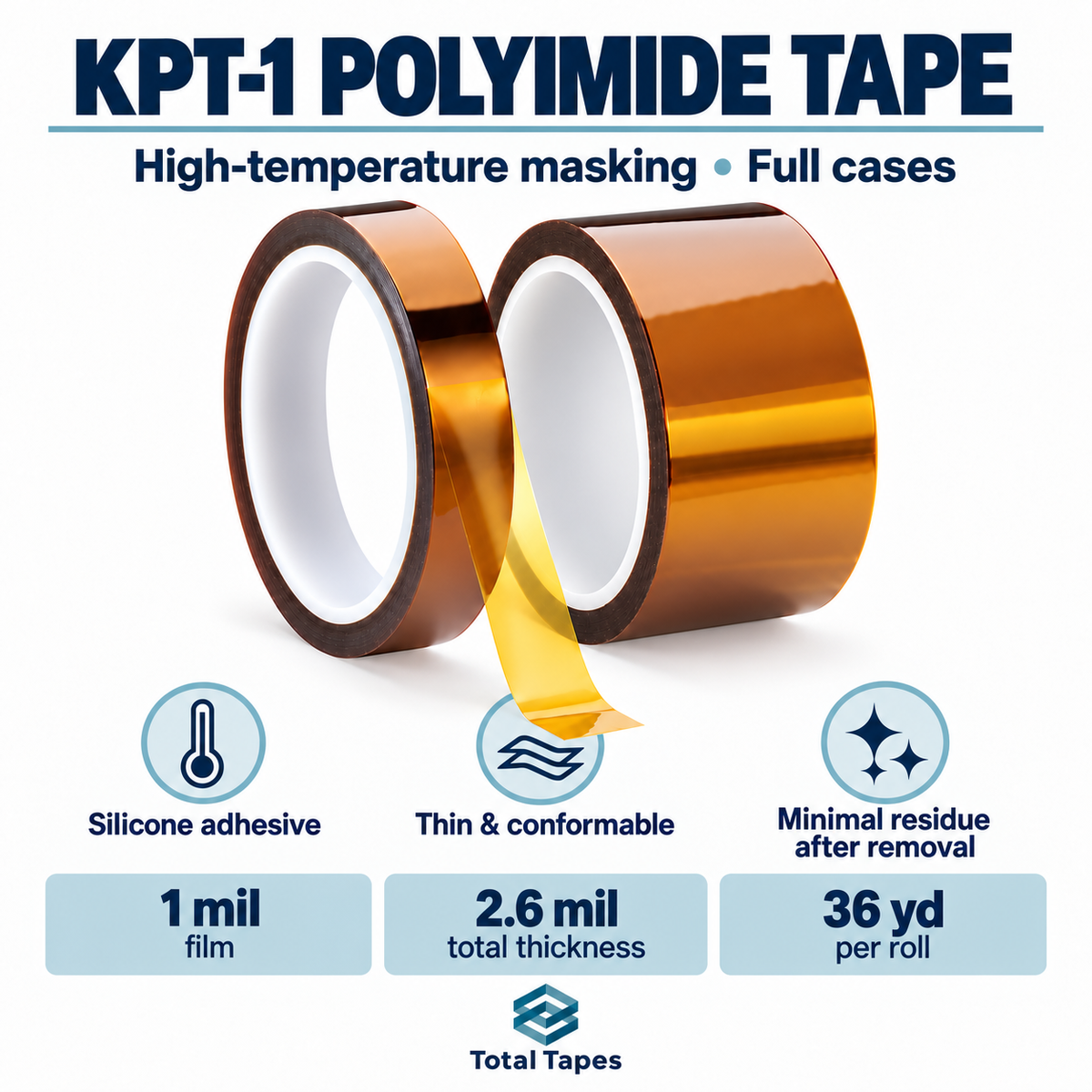

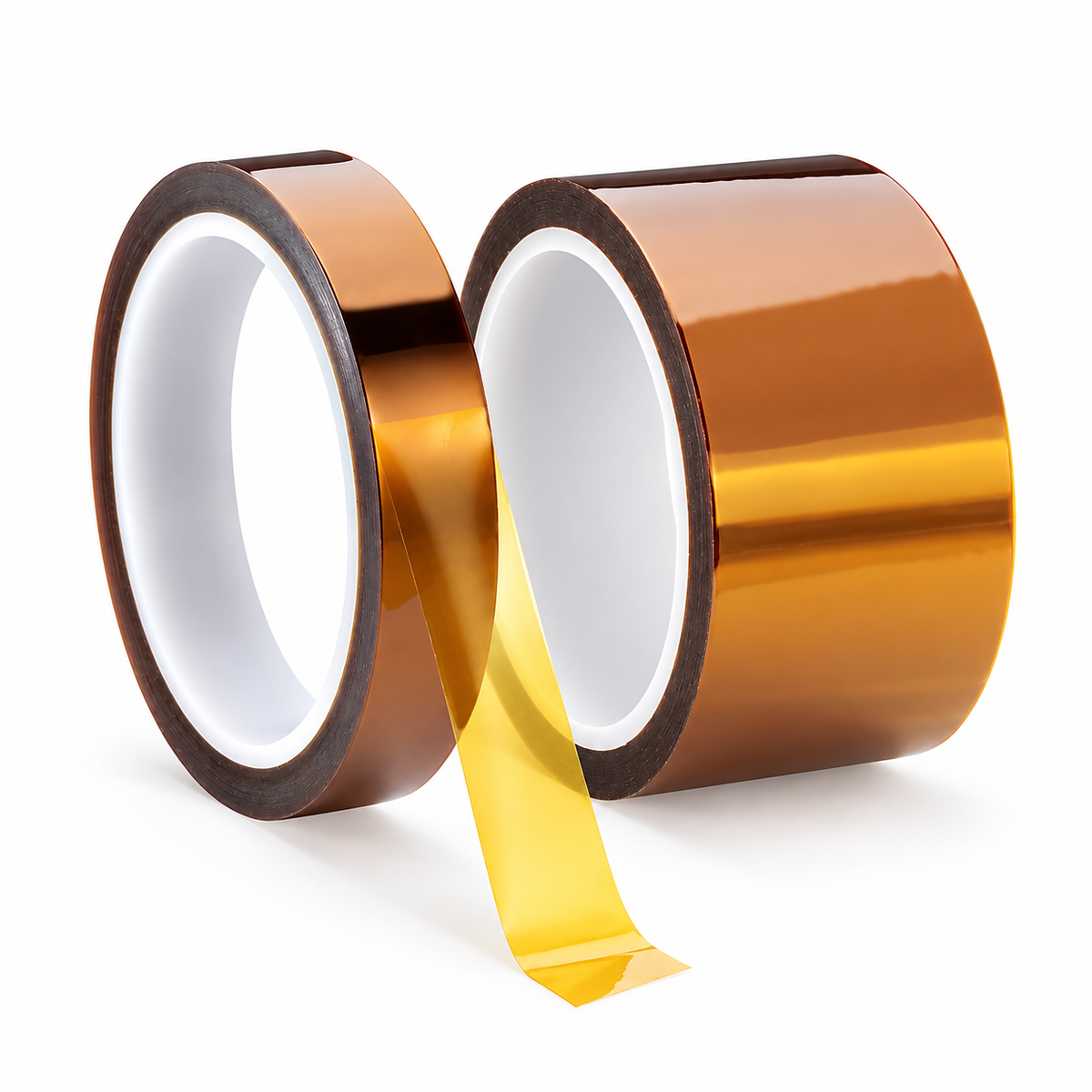

KPT-1 is a gold/amber, transparent polyimide film tape with a high-performance silicone adhesive. Thin and conformable, it is designed for wave solder and hot air leveling applications, including protecting gold contacts from molten solder during processing. The transparent film allows observation of the board while masked.
- High-temperature performance: temperature resistance of 200°C (392°F), with excellent tear and abrasion resistance at elevated temperatures.
- Thin, flexible construction: 1 mil polyimide film and 2.6 mil total tape thickness for precise masking.
- Silicone adhesive: provides adhesion during processing and leaves minimal residue after removal to help reduce cleanup.
- Chemical resistance: resists acids, oils, solvents, aging, staining and water immersion.
- Consistent roll format: 36 yards (33 m) per roll on a 3-inch plastic core.

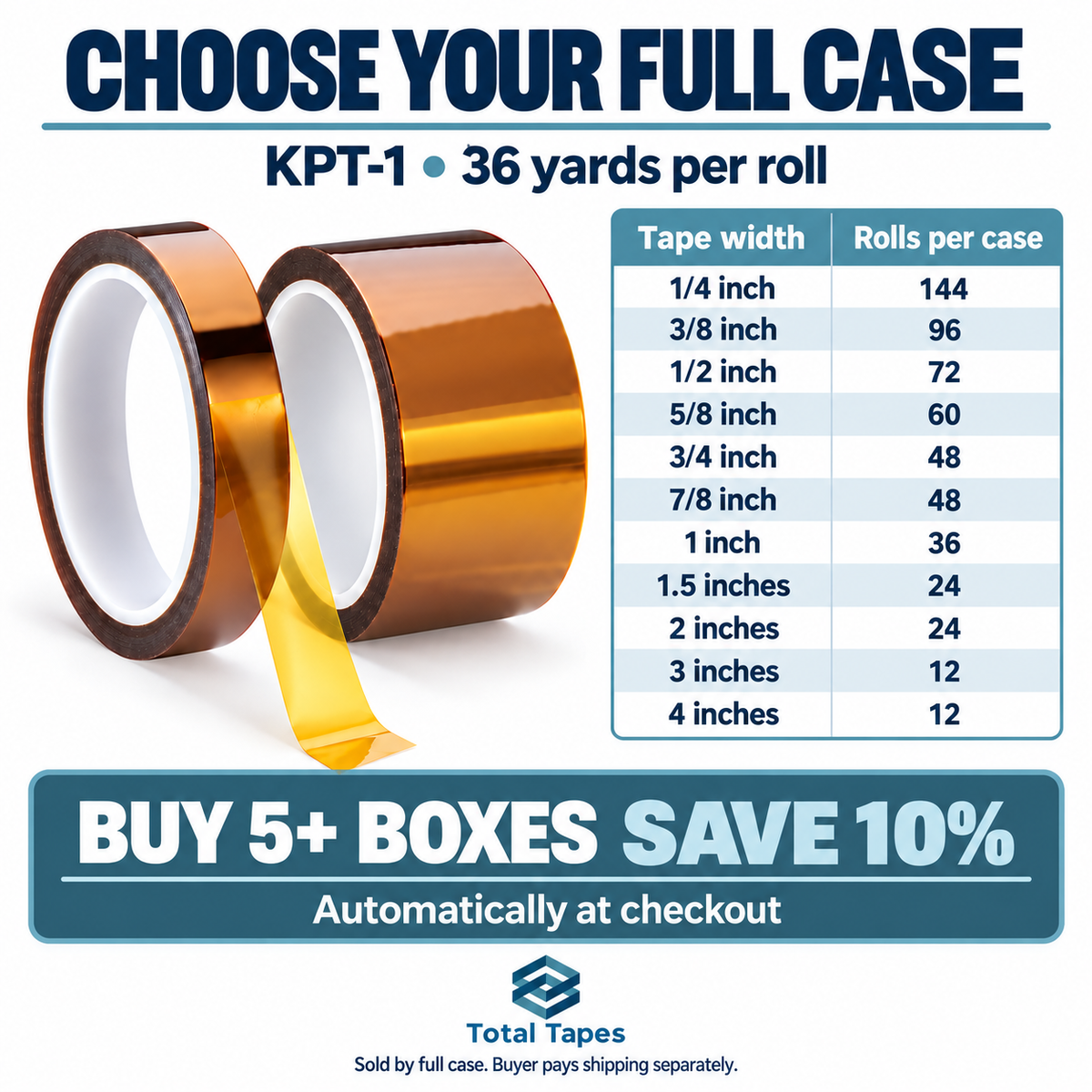

Choose your full case
Select the width and case quantity. Quantity 1 means one full case of the selected size. Shipping is paid separately by the buyer and is not included in the product price.
| Width | Rolls per case |
|---|---|
| 1/4 inch | 144 |
| 3/8 inch | 96 |
| 1/2 inch | 72 |
| 5/8 inch | 60 |
| 3/4 inch | 48 |
| 7/8 inch | 48 |
| 1 inch | 36 |
| 1.5 inch | 24 |
| 2 inch | 24 |
| 3 inch | 12 |
| 4 inch | 12 |
Buy 5 or more boxes and save 10%
Order five or more full cases of KPT-1 polyimide tape and receive 10% off automatically at checkout. Eligible KPT-1 widths can be combined to reach five cases. Shipping is charged separately.

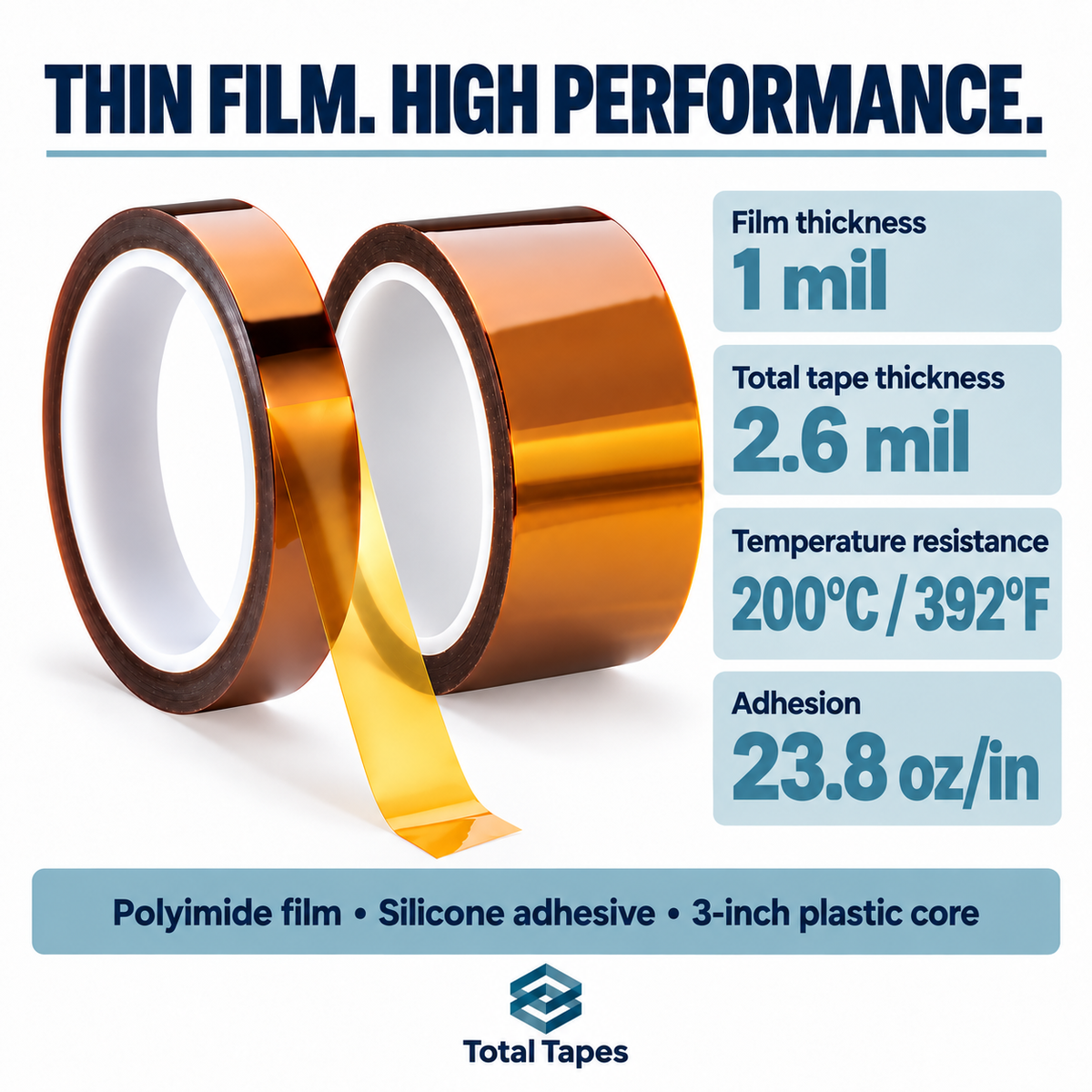

Technical specifications
- Product: KPT-1
- Backing: polyimide film
- Adhesive: silicone
- Film thickness: 1 mil
- Total tape thickness: 2.6 mil
- Adhesion: 23.8 oz/in
- Tensile strength: greater than 20.6 lb/in
- Elongation: greater than 30%
- Dielectric strength: greater than 4,000 V
- Temperature resistance: 200°C (392°F)
- Film color: transparent gold/amber
- Length: 36 yards (33 m) per roll
- Core: 3-inch plastic
A polyimide tape alternative for applications commonly served by Kaptonâ„¢ tape. This listing is for KPT-1 alternative polyimide tape.
Before you order
Match process temperature, exposure duration, substrate, and removal requirements. The listed temperature is not a universal process approval.
